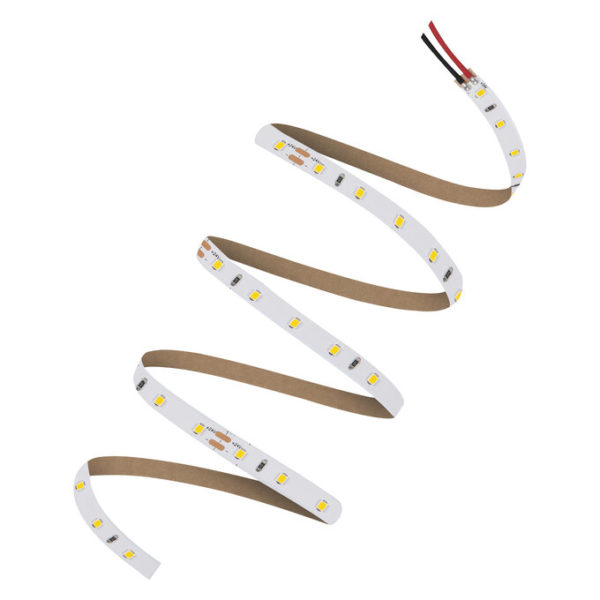

LS VAL -600/840/50

LS VAL -600/840/50

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075597419 Категория:
Product benefits
  • Long LED strips for customized solutions made to measure
  • Great design freedom thanks to flexibility and cuttability of module
  • Maximum flexibility due to large range of accessories
  • Easy installation, no tools required for connection
Areas of application
  • General indoor illumination
  • Cove lighting
  • Bars, restaurants, hotels
  • Residential interiors
Product features
  • Flexible and cuttable LED strip
  • Luminous flux: 600 lm/m
  • Color rendering index Ra: > 80
  • Lifetime (L70/B50): up to 20,000 h at Tc max.: 75°C
  • Smallest cuttable unit: 100 mm
  • Available with color temperature: 3,000 K, 4,000 K, 6,500 K
  • Dimmable with suitable drivers, see also
Equipment / Accessories
  • Connectors, profiles and covers for several mounting options available
GTIN

4058075597419
Nominal wattage

27.50 W
Nominal voltage

24 V
Nominal current

230 mA
Luminous flux

2880 lm
Luminous efficacy

98 lm/W 1)
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

> 80
Standard deviation of color matching

≤5 sdcm
Beam angle

120 °
Height

1.50 mm
Product weight

1350.00 g
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of protection

IP00
Dimmable

Yes 1)
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Protection class

III
Length

50000.00 mm
Width

8.00 mm
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Energy consumption

3.10 kWh/1000h 1)
Construction wattage

27.50 W
Type of current

DC
Maximum temperature at tc test point

75 °C
Cable length

500.000
Input voltage range

23…25 V
Temperature range in operation

-20…+40 °C
Approval marks – approval

CE
Prewired

Yes
Conductor cross section

0.5 mm²
Light color LED

Cool White
Nominal lamp life time

20000 h
Energy class of contained light source

F
Nominal wattage per meter

6.1 W 1)
Luminous flux per meter

600 lm 1)
Number of LEDs per meter

60
Lowest bending radius

15.0 mm
Self-adhesive

Yes
Number of LEDs per smallest unit

6
Length – smallest unit

100 mm
LED pitch

16.67 mm
Salt mist resistance acc. IEC 60068-2-52

No
UV resistance acc. IEC 60068-2-5

No
Short pitch

No
Reverse Voltage

30 V
