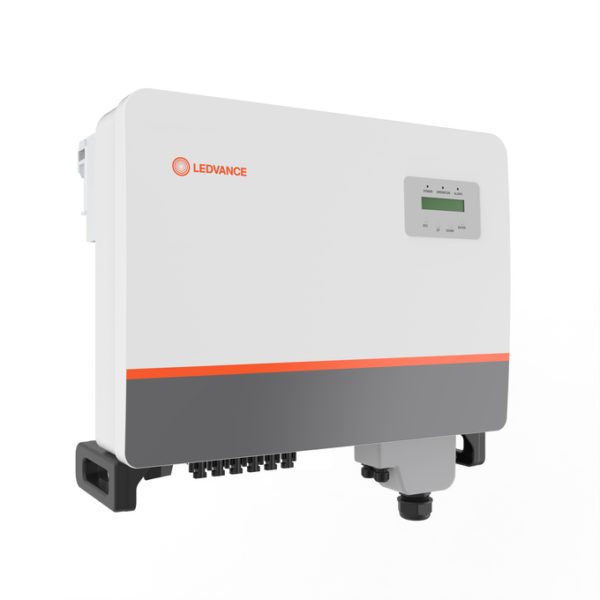

LT 33K F2-DC-AFCI-WIET

LT 33K F2-DC-AFCI-WIET

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854167720 Категория:
Product benefits
  • 10 years of product guarantee
  • Built-in LCD display
  • Wide voltage range and low startup voltage
  • AFCI protection, proactively reduces fire risk
  • Level II surge protection on AC and DC side
  • Automatic voltage stabilization technology in weak grid conditions
  • Easy installation
Areas of application
  • Commercial and industrial installations
  • Utility installations
Product features
  • Smart fan cooling
  • Integrated DC switch
  • Protection rating: IP66
  • Original Stäubli MC4 connectors
Equipment / Accessories
  • Mounting bracket included
  • Data logger included
  • AC terminal cover included
  • Supplied with user manual
  • Additional DC connectors for the outlets on the inverter
  • RJ45 connector included
  • Fastening and hex screws included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
References / Links
  • For Guarantee see
GTIN

4099854167720
Height

629 mm
Product weight

37000.000 g
Product color

White
Ambient temperature range

-25…+60 °C
Type of connection

Staubli MC4
Type of protection

IP66
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1), N,N-Dimethylformamide (68-12-2), 1,3,5-Triazine-2,4,6-triamine (108-78-1) , Bis(α,α-dimethylbenzyl) peroxide (80-43-3), 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV329) — (3147-75-9)
Length

647 mm
Width

252 mm
Input voltage DC

600 V
Temperature range in operation

-25…+60 °C
Suitable for emergency power

No
Outdoor application

No
Output phases

3-phase
Max. input power DC

49.5 kW
MPP voltage

200 — 1000 V
Max. input current DC

32 A
Max. input current DC per string input

16 A
Max. input current DC per MPP tracker

32 A
Max. short circuit current per MPPT

40 A
Number of independent MPPT inputs

3
String connections per MPPT input

2
Nominal output power AC

33 kW
Integrated DC switch

Yes
Connection DC for battery

No
Charging controller integrated

No
With data logging

Yes
Wireless

Yes
Display

Standard
Ethernet

Yes
Integrated transformer

No
Maximum efficiency

98.60 %
European efficiency

98.20 %
