Product benefits
- Easy entry into DALI lighting control
- Flexible creation of up to 4 individually controllable lighting groups and 4 scenes without additional app or software
- Mains powered (active mode) or DALI powered (passive mode) operation
- Individual settings via integrated rotary control
- Compatible with standard motion detectors
- High quality glass cover
- Adjustable orientation and function lighting around the rotary knob
- 7-year system guarantee in combination with LEDVANCE DALI lights without registration
- Optional surface mount frame available
Areas of application
- Rooms with up to 4 entrances/exits
- Meeting and conference rooms
- Bars, restaurants
- Hotel rooms
Product features

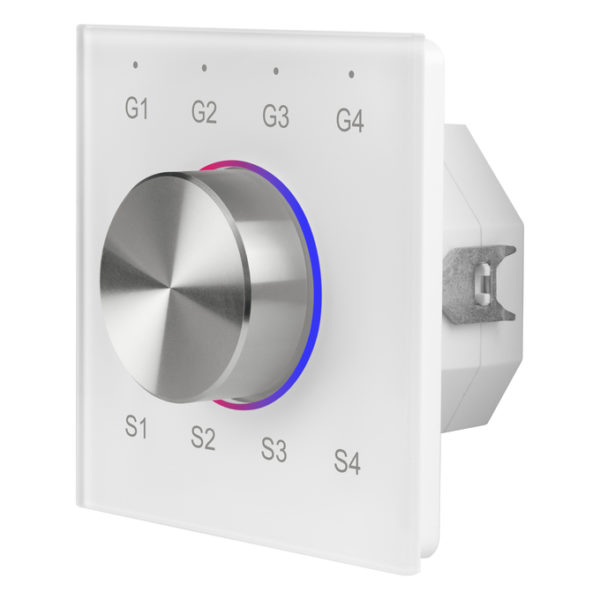

- DALI-2 control device for installation in standard switch boxes
- Number of DALI lights per control unit: up to 25
- Rotary knob and touch-sensitive glass cover for manual light control
- Lighting control functions: ON/OFF, DIM, SCENES, GROUPS, TUNABLE WHITE
- Up to 4 control devices can be connected in parallel to set up several control points
- Automatic synchronization between control points
Equipment / Accessories
- Surface Mount Frame
Safety advice
- All electrical connections must be made by a qualified person.
- Disconnect mains before installation.
References / Links
- For current information see
