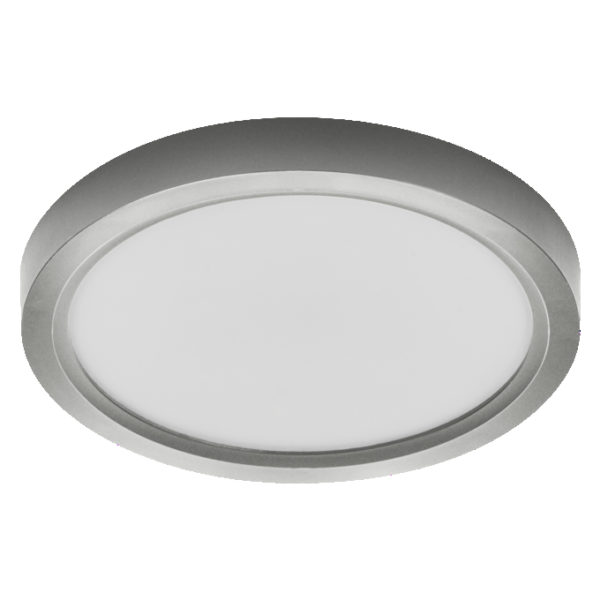

Orbis Quickfix 320mm 24W Click Dim 830 Silver

Orbis Quickfix 320mm 24W Click Dim 830 Silver

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854604546 Категория:
Product benefits
  • Click dim function by wall switch
  • Through-wiring possible with included connector box
  • Easy mounting
  • Excellent price/performance ratio
Areas of application
  • Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
  • Easy operation and installation
  • Click-DIM version: dimmable in three steps by repeated switching
  • Through wiring possible
  • Housing material: plastic and metal
  • Color temperature: 3,000 K
  • Type of protection: IP20
Equipment / Accessories
  • Mounting screws and dowels included
Safety advice
  • Luminaire must be disconnected from mains during installation, maintenance and cover removal
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
GTIN

4099854604546
Nominal wattage

24.00 W
Nominal voltage

220…240 V
Nominal current

180.000 mA
Luminous flux

2500 lm
Luminous efficacy

104 lm/W
Color temperature

3000 K
Light color (designation)

Warm White
Color rendering index Ra

> 80
Standard deviation of color matching

6 sdcm
Photobiological safety group acc. to EN62778

RG0
Beam angle

115 °
Height

24.00 mm
Product weight

810.00 g
Product color

Silver
Housing color

Silver
Body material

Metal, Acrylonitrile butadiene styrene (ABS)
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Terminal, 2-Pole (L, N)
Type of protection

IP20
Dimmable

Yes
Lifespan L70/B50 at 25 °C

30000 h 1)
Number of switching cycles

15000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Diameter

320.00 mm
Replaceable light source

No
Mounting type

Surface
Mounting location

Ceiling
Protection class

II
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Cover material

Polystyrene (PS)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

0.125 A
Power factor λ

0.50
Total harmonic distortion

64 %
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Total luminous flux of contained light sources

4100 lm
Max. number of luminaires per miniature circuit breaker B16

68
Max. number of luminaires per miniature circuit breaker C10

57
Max. number of luminaires per miniature circuit breaker C16

92
Protection class IK (shock resistance)

IK03
Type of dimming

3 DIM
