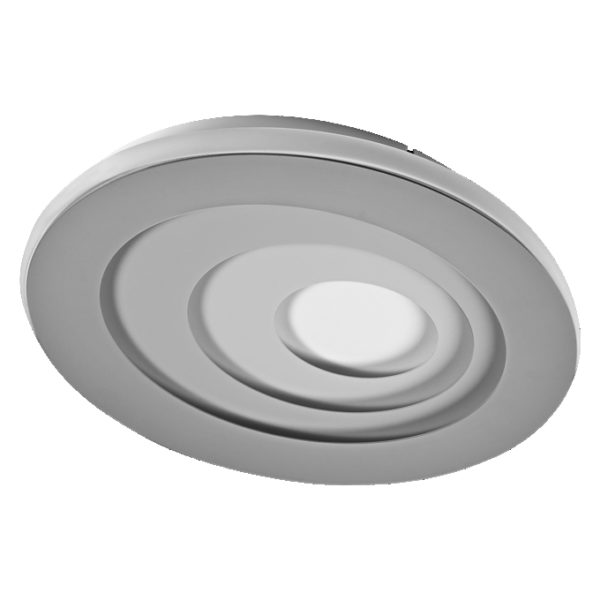

Orbis Spiral Oval 360mm 25W Click Dim 830 Grey

Orbis Spiral Oval 360mm 25W Click Dim 830 Grey

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854613173 Категория:
Product benefits
  • Click dim function by wall switch
  • Stylish and modern design
  • Long lifetime thanks to LED technology
Areas of application
  • Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
  • Ceiling luminaire with advanced LED technology
  • Click-DIM version: dimmable in three steps by repeated switching
  • Color temperature: 3,000 K (Warm White)
  • Lifetime up to 25,000 h
  • Type of protection: IP20
Equipment / Accessories
  • Mounting screws and dowels included
Safety advice
  • Luminaire must be disconnected from mains during installation, maintenance and cover removal
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
GTIN

4099854613173
Nominal wattage

25.00 W
Nominal voltage

220…240 V
Nominal current

114.000 mA
Luminous flux

1000 lm
Luminous efficacy

40 lm/W
Color temperature

3000 K
Light color (designation)

Warm White
Color rendering index Ra

> 80
Standard deviation of color matching

≤6 sdcm
Stroboscope effect metric (SVM)

≤0.4
Photobiological safety group acc. to EN62778

RG0
Height

56.00 mm
Product weight

1557.00 g
Product color

Gray
Housing color

Gray
Body material

Metal
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Terminal, 2-Pole (L, N)
Type of protection

IP20
Dimmable

Yes
Lifespan L70/B50 at 25 °C

30000 h 1)
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Replaceable light source

No
Mounting type

Surface
Mounting location

Ceiling
Protection class

II
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Cover material

Silicone
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

2.4 A
Inrush current time Th50

191.7 µs
Power factor λ

> 0.9
Total harmonic distortion

< 20 %
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Total luminous flux of contained light sources

3132
Max. number of luminaires per miniature circuit breaker B16

112
Max. number of luminaires per miniature circuit breaker C16

112
Photobiological safety group acc. to EN62471

RG0
Length

300.00 mm
Width

360.00 mm
Type of dimming

3 DIM
