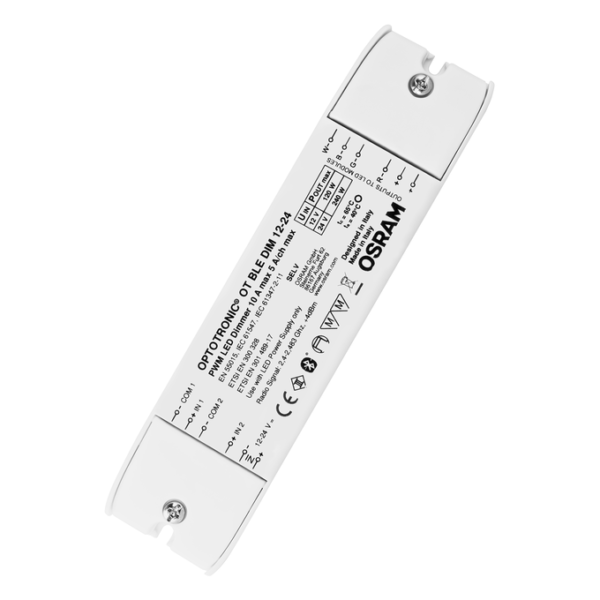

OT BLE DIM

OT BLE DIM

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4052899557833 Категория:
Product benefits
  • Control of white, Tunable White, RGB and RGBW LED modules
  • Independent housing for ceiling installation
  • Support of systems based on CASAMBI lighting control solutions
  • Minimal installation effort
  • Dry contacts for optional connection to any commercial pushbutton
Areas of application
  • Suitable for indoor installations
  • Shops and hospitality: retail, hotels, restaurants
  • Museums, residential buildings
Product features
  • Wireless 4-channel dimmer, with a output voltage of 12 V and 24 V
  • Control of LED loads of up to 240 W
  • Wireless module based on Bluetooth Low Energy
GTIN

4052899557833
Nominal wattage

240.00 W
Nominal voltage

12…24 V
Height

20.00 mm
Product weight

200.00 g
Product color

White
Body material

Plastic
Ambient temperature range

-20…+45 °C
Temperature range at storage

-40…+85 °C
Type of protection

IP20
Dimmable

Yes
Standards

Acc. to EN 550
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Protection class

III
Mains frequency

0/50 Hz
Length

172.00 mm
Width

42.00 mm
Type of connection, output side

Screw terminal
Quantity of precious metals

0 mg
Quantity of rare earths

0 mg
Energy efficiency class

A1
Maximum temperature at tc test point

65 °C
Operating frequency

600 Hz
Input voltage DC

12/24 V
ECG lifetime

50000 h 1)
Dimming range

0…100 %
Dimming interface

Bluetooth Low Energie
Cable cross-section, output side

0.5…1.5 mm²
Permitted rel. humidity during operation

5…85 % 1)
Approval marks – approval

CE
Cable cross-section, input side

0.5…1.5 mm²
Wire preparation length, input side

10 mm
Mounting hole spacing, length

164,0 mm
Overheating protection

Yes
Overload protection

Yes
Nominal output power

240 W
Wire preparation length, output side

10 mm
Nominal output voltage

12…24 V
ECG efficiency

98 % 1)
Device power loss

< 0.5 W
Galvanic isolation

Non isolated
Power loss in stand-by mode

< 0.5 W
Casing material

Plastic
Max.housing temperature in case of fault

115 °C
Encapsulated

No
Suitable for fixtures with prot. class

III
U-OUT (working voltage)

24 V
Type of installation

Luminaire integration/Ceiling integration
No-load proof

Yes
Number of control outputs

4
