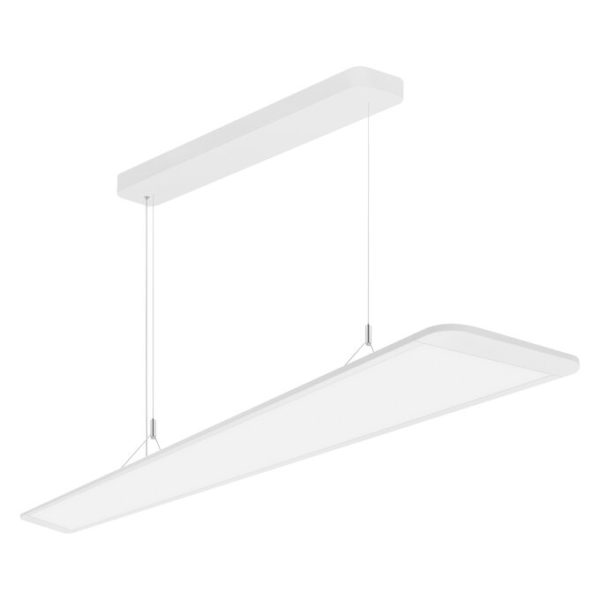

PANEL D/I 1200 36 W 4000 K UGR19 ZBVR

PANEL D/I 1200 36 W 4000 K UGR19 ZBVR

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075521889 Категория:
Product benefits
  • Suitable luminaire for VIVARES and other Zigbee 3.0 Light Management Systems
  • Suspended edge-lit luminaires for direct light emission (70% ) and indirect light emission (30%)
  • Attractive and functional design for office applications
  • Good glare reduction (UGR ≤ 19)
  • Very homogenous light
  • Low maintenance and low operational costs
  • External driver for extended flexibility
  • Special light guide design for low-glare illumination
  • Easy and quick installation
  • Low flicker light thanks to special electronic control gear
  • 5 years guarantee
Areas of application
  • Efficient replacement for traditional T8 and T5 luminaires
  • Offices
  • Meeting rooms
  • Conference rooms
  • Reception areas and foyers
Product features
  • IoT-ready luminaire with Zigbee 3.0 technology
  • Rectangular (1200 mm x 300 mm) stand-alone luminaires with direct (70 %) and indirect (30 %) light emission
  • Driver integrated into the remote driver box
  • UGR ≤ 19 according to EN12464-1
  • High luminous efficacy: up to 110 lm/W
  • Lifetime (L70/B50): 80,000 h (at 25 °C)
  • Follows the unified LEDVANCE design language (SCALE design)
  • Very slim aluminum housing
Equipment / Accessories
  • Suspension kit included
References / Links
  • For Guarantee see
GTIN

4058075521889
Nominal wattage

36.00 W
Nominal voltage

220…240 V
Nominal current

250.000 mA
Luminous flux

4000 lm
Luminous efficacy

110 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

≥80
Standard deviation of color matching

4 sdcm
Flickering metric (Pst LM)

—
Stroboscope effect metric (SVM)

—
Photobiological safety group acc. to EN62778

RG0
Beam angle

110 °
Height

16.00 mm
Product weight

3500.00 g
Product color

White
Housing color

White
Body material

Aluminum
Ambient temperature range

-20…+45 °C
Type of connection

Screwless terminal
Type of protection

IP20
Dimmable

Yes
Lifespan L70/B50 at 25 °C

80000 h 1)
Number of switching cycles

100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Suspended
Mounting location

Ceiling
Protection class

I
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

30 A
Inrush current time Th50

200 µs
Power factor λ

≥0.90
Total harmonic distortion

≤ 10 %
Operating mode

External LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

11
Max. number of luminaires per miniature circuit breaker C10

10
Max. number of luminaires per miniature circuit breaker C16

16
Protection class IK (shock resistance)

IK03
Length

1200.00 mm
Width

300.00 mm
Type of dimming

ZIGBEE
Application environment

Indoor
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Luminous intensity

—
Added function

VIVARES
Lifespan L80/B10 at 25 °C

60000 h 1)
Light emitting surface material

Polystyrene
UGR

< 19
Output current

800 mA
Lifespan L90/B10 at 25 °C

50000 h
Low flicker

Yes
RAL Color (most similar)

RAL 9003
ECG - Output ripple current

≤ 5 %
IoT ready

Support of DALI data type PART 251, 252, 253 1)
