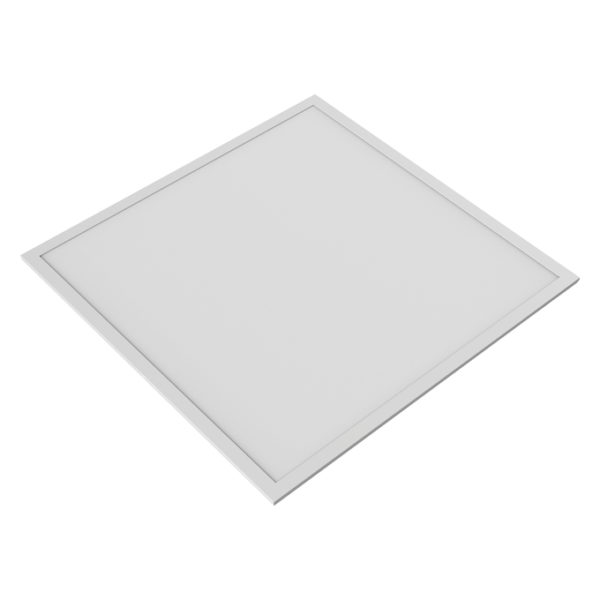

Panel Essential 600x600mm 840 White

Panel Essential 600x600mm 840 White

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854451584 Категория:
Product benefits
  • Homogenous light distribution
  • Easy and quick installation
  • Excellent price/performance ratio
Areas of application
  • Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
  • Wall and ceiling luminaire
  • Lifetime up to 25,000 h
  • Type of protection: IP20
Equipment / Accessories
  • Mounting screws and dowels included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • The luminaires are not suitable for covering with thermally insulated material.
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
GTIN

4099854451584
Nominal wattage

36.00 W
Nominal voltage

220…240 V
Nominal current

178.000 mA
Luminous flux

3200 lm
Luminous efficacy

88 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

> 80
Standard deviation of color matching

6 sdcm
Photobiological safety group acc. to EN62778

RG0
Beam angle

110 °
Height

35.00 mm
Product weight

1410.00 g
Product color

White
Housing color

White
Body material

Aluminum, Plastic
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Cable, 3-pole
Type of protection

IP20
Dimmable

No
Lifespan L70/B50 at 25 °C

20000 h 1)
Number of switching cycles

10000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Additional info can be provided per individual request
Replaceable light source

No
Mounting type

Surface
Mounting location

Wall
Protection class

I
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current time Th50

10.4 µs
Power factor λ

> 0.90
Total harmonic distortion

< 20 %
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Total luminous flux of contained light sources

3850 lm
Max. number of luminaires per miniature circuit breaker B16

7
Max. number of luminaires per miniature circuit breaker C16

15
Protection class IK (shock resistance)

IK03
Photobiological safety group acc. to EN62471

RG0
Length

596.00 mm
Width

596.00 mm
Mounting width

590,00 mm
Mounting length

590,00 mm
Application environment

Indoor
UGR

< 25
