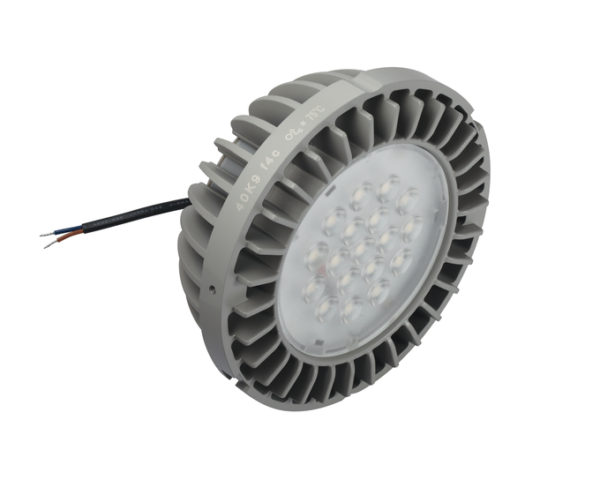

PL-CN 111AC-1800-830 40 G1

PL-CN 111AC-1800-830 40 G1

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4052899165656 Категория:
Product benefits
  • Easy and quick design-in for luminaire manufacturers
  • Turn-key solution for projects
  • 5 year guarantee
Areas of application
  • LED replacement for high intensity discharge lamps up to 35 W
  • Shop lighting
  • Shopping centers
  • Exhibition halls
  • Museums
  • Suitable for indoor applications
Product features
  • Integrated driver, heat sink and lens optics
  • Fits into most existing traditional R111 luminaires
  • Available with 24° or 40° beam angle
  • Versions with different luminous flux and different color temperatures available
  • Lifetime (L70/B50): 35,000 h (temperature at Tc = 68 °C)
  • Max. working voltage: 60 V (to be operated only on SELV LED control gear)
References / Links
  • For more information on the multi-level guarantee and the terms and conditions of the guarantee visit
GTIN

4052899165656
Nominal wattage

22.50 W
Nominal voltage

230 V
Nominal current

105.000 mA
Luminous flux

1616 lm
Luminous efficacy

82 lm/W
Color temperature

3000 K
Light color (designation)

Warm White
Color rendering index Ra

83
Standard deviation of color matching

≤4 sdcm
Beam angle

40 °
Height

50.00 mm
Product weight

340.00 g
Product color

White
Ambient temperature range

-40…80 °C
Type of protection

IP20
Dimmable

No
Number of switching cycles

›100.000
Standards

Acc. to EN 550
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Diameter

110.7 mm
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Power factor λ

≥ 0.90
Product remark

For current photometric data and important safety, installation and application information, see http://www.osram.com/led-system
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Energy efficiency class

A
Energy consumption

23.00 kWh/1000h
Construction wattage

22.50 W
Type of current

AC
Maximum temperature at tc test point

-40…80 °C
Lumen main.fact.at end of nom.life time

0.70
Luminous intensity

3300 cd
Rated peak intensity

3300 cd
Performance temp. acc. to IEC 62717

68 °C
Cable length

500.000
Input voltage range

220…240 V
Temperature range in operation

-40…80 °C
Light color LED

White
Rated beam angle (half peak value)

40.00 °
Number of LEDs per module

18
Nominal lamp life time

35000 h
Total useful luminous flux [PICOS]

1850 lm
Nom. useful luminous flux 120° [PICOS]

1759 lm
