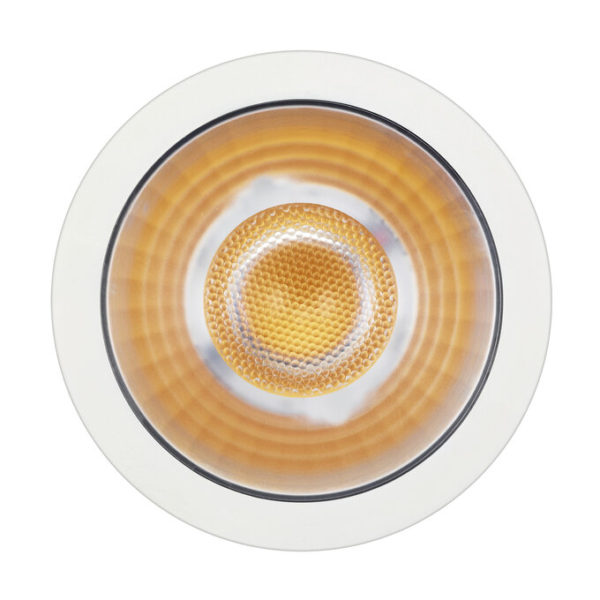

PL-CN50-COB- 1400-830-40D-G2

PL-CN50-COB- 1400-830-40D-G2

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4052899621343 Категория:
Product benefits
  • Compatible with conventional MR16 lamps
  • Precise optical control and free from multi-shadow issue
  • Replaceable front cover to maximize optics flexibility and future extension
  • Dual mode options in High-Output (HO) and High-Efficacy (HE)
Areas of application
  • Retail, shop, restaurant, hospitality
  • High-end residential
  • Suitable for indoor applications
  • Connecting multiple modules in parallel on one LED driver is not permitted
  • Connecting multiple modules in series on one LED driver is not recommended
  • Do not use in sealed fixtures
  • Avoid covering the lens with dust or any object
Product features
  • Color consistency < 2 SDCM
  • TM30 compliant
  • High flux output up to 1500 lm
  • Beam angle: 24°, 36°
  • Type of protection: IP20
GTIN

4052899621343
Nominal wattage

12.80 W
Nominal voltage

36.5 V
Nominal current

350.000 mA
Luminous flux

1250 lm 1)
Luminous efficacy

116 lm/W
Color temperature

3000 K
Light color (designation)

3000 K
Color rendering index Ra

80
Standard deviation of color matching

2 sdcm
Beam angle

40 °
Height

55.00 mm
Product weight

90.00 g
Product color

White
Ambient temperature range

-25…+40 °C
Temperature range at storage

-40…80 °C
Type of protection

IP20
Dimmable

No
Number of switching cycles

> 15000
Standards

Acc. to IEC 624
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Diameter

50,0 mm
Length

50.00 mm 1)
Width

50.00 mm
Product remark

Modules perfectly matched to OSRAM OPTOTRONIC® LED drivers (see relevant tabl
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Energy efficiency class

F
Energy consumption

12.80 kWh/1000h
Lighting technology used

LED
Construction wattage

12.80 W
Type of current

DC
Maximum temperature at tc test point

90 °C
Lumen main.fact.at end of nom.life time

0.70
Warm-up time (60 %)

‹ 2.00 s
Luminous intensity

2450 cd
Rated peak intensity

2450 cd
Performance temp. acc. to IEC 62717

70 °C
Cable length

300.000
Input voltage range

33.1…42 V
Temperature range in operation

-25…90 °C
Light color LED

White
Rated beam angle (half peak value)

40.00 °
Number of LEDs per module

1
Nominal lamp life time

50000 h
Energy class of contained light source

F
