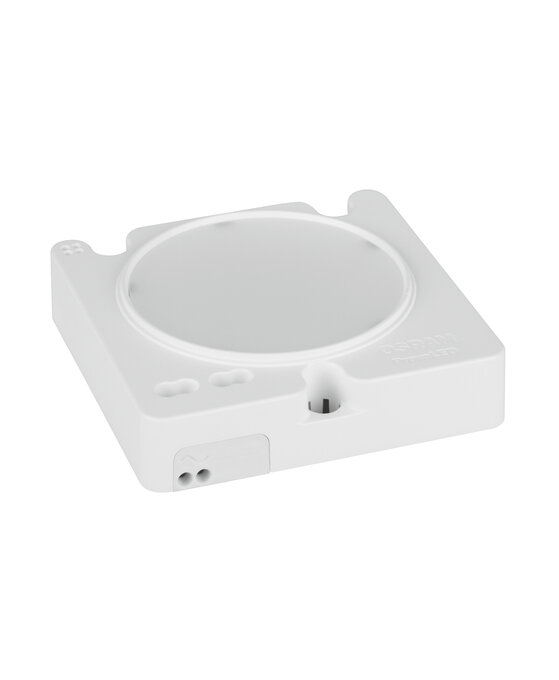

PL-CUBE-AC -G4-2000-830

PL-CUBE-AC -G4-2000-830

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4062172239493 Категория:
Product benefits
  • Enables low-cost and compact luminaire designs
  • Low profile
  • Future-proof dimensions for reliable designs
  • Near Lambertian light distribution at 110° beam angle for high quality of light
  • Protection against overheating due to thermal derating
  • 5 year guarantee
Areas of application
  • Suitable for diffuser and reflector luminaires
  • Hospitality, hotels, restaurants
  • Public and commercial buildings
  • Offices
  • Secondary rooms, garages, storerooms, cellars
Product features
  • Mains voltage driven LED engine
  • Integrated control gear
  • Diameter of light emitting surface: 61 mm
  • Common mechanic and photometric interfaces
  • Initial color consistency: < 3 SDCM
  • Lifetime (L70/B50): 50,000 h (temperature at Tc = 70 °C)
  • LED module is reinforced isolated to mounting surface
  • Photobiological safety according to IEC/TR 62778, risk group RG1
GTIN

4062172239493
Nominal wattage

19.50 W
Nominal voltage

230 V
Nominal current

85.000 mA
Luminous flux

1635 lm 1)
Luminous efficacy

107 lm/W
Color temperature

3000 K
Light color (designation)

Warm White
Color rendering index Ra

80
Standard deviation of color matching

≤3 sdcm
Flickering metric (Pst LM)

≤1
Stroboscope effect metric (SVM)

≤0.9
Beam angle

110 °
Height

21.10 mm
Product weight

60.00 g
Product color

White
Ambient temperature range

-20…+50 °C 1)
Temperature range at storage

-20…85 °C
Type of protection

IP20
Dimmable

No
Number of switching cycles

100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Length

82.80 mm
Width

81.60 mm
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Energy efficiency class

F
Energy consumption

19.50 kWh/1000h
Lighting technology used

LED
Construction wattage

19.50 W
Type of current

AC
Maximum temperature at tc test point

90 °C
Warm-up time (60 %)

‹ 2.00 s
Luminous intensity

755 cd
Rated peak intensity

755 cd
Performance temp. acc. to IEC 62717

70 °C
Input voltage range

220…240 V
Temperature range in operation

-20…90 °C 2)
Light color LED

Warm White
Nominal lamp life time

50000 h
Energy class of contained light source

F
