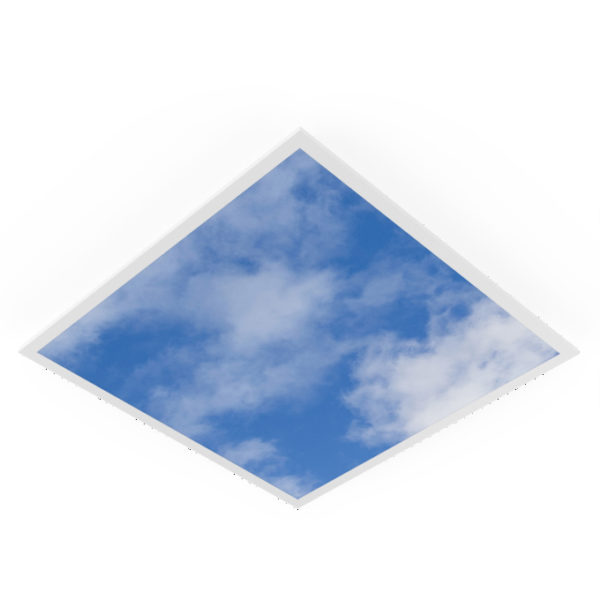

PL PRINT SKY1 600 V 26W

PL PRINT SKY1 600 V 26W

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075861701 Категория:
Product benefits
  • Brings natural looking sky into buildings
  • Luminous ceiling creating an atmosphere that comforts people
  • Available as a single panel, set of 4, set of 6 and set of 9
  • Other images, customized patterns and logos on request
  • External driver with an optional 3-pole through-wiring feature
  • Version with DALI ECG available
  • Through-wiring possible
Areas of application
  • Suitable for recessed ceiling systems with grid size of 600 x 600 mm
  • Lounges, reception areas, foyers, corridors, elevators
  • Decorative illumination
Product features
  • Extruded aluminum frame, metal housing
  • Color coated polystyrene diffuser
  • UGR ≤ 22 with a 120° beam angle
  • Lifetime (L80/B10): up to 75,000 h (at 25 °C)
Equipment / Accessories
  • Accessories for several mounting options available
  • Security rope for luminaire included
  • Security brackets preinstalled
  • External control gear included
Safety advice
  • The individual pattern can have influence on the perceived CRI, color temperature and lumen value.
References / Links
  • For Guarantee see
GTIN

4058075861701
Nominal wattage

26.00 W
Nominal voltage

220…240 V
Nominal current

120.000 mA
Luminous flux

3640 lm 1)
Luminous efficacy

140 lm/W 1)
Color rendering index Ra

> 80 1)
Standard deviation of color matching

< 3 sdcm 1)
Stroboscope effect metric (SVM)

< 0.4
Photobiological safety group acc. to EN62778

RG0
Beam angle

110 °
Height

34.00 mm
Product weight

1450.00 g
Product color

White
Housing color

White
Body material

Aluminum
Ambient temperature range

-10…+45 °C
Temperature range at storage

-20…+70 °C
Type of connection

Screw terminal, 3-Pole
Type of protection

IP50/IP20
Dimmable

No
Lifespan L70/B50 at 25 °C

100000 h 1)
Number of switching cycles

100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Replaceable light source

No
Mounting type

Recessed/Suspended/Surface
Mounting location

Ceiling
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Cover material

Polystyrene (PS)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50/60 Hz
Inrush current

28 A
Inrush current time Th50

95 µs
Power factor λ

0.90
Total harmonic distortion

< 10 %
Operating mode

External LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

25
Max. number of luminaires per miniature circuit breaker C10

21
Max. number of luminaires per miniature circuit breaker C16

34
Protection class IK (shock resistance)

IK02
Photobiological safety group acc. to EN62471

RG0
Length

595.00 mm
Width

595.00 mm
Mounting width

575 mm
Mounting length

575 mm
Application environment

Indoor
Lifespan L80/B10 at 25 °C

75000 h 1)
Adjustable

No
Light emitting surface material

Polystyrene
Mounting depth

50 mm
Output current

700 mA
ECG - Length

175 mm
ECG - Width

55 mm
ECG - Height

30 mm
Lifespan L90/B10 at 25 °C

35000 h
Low flicker

Yes
RAL Color (most similar)

RAL 9003
ECG - Output ripple current

0.05 %
Recommended control gear

DR DALI-P-42/220-240/1A0
