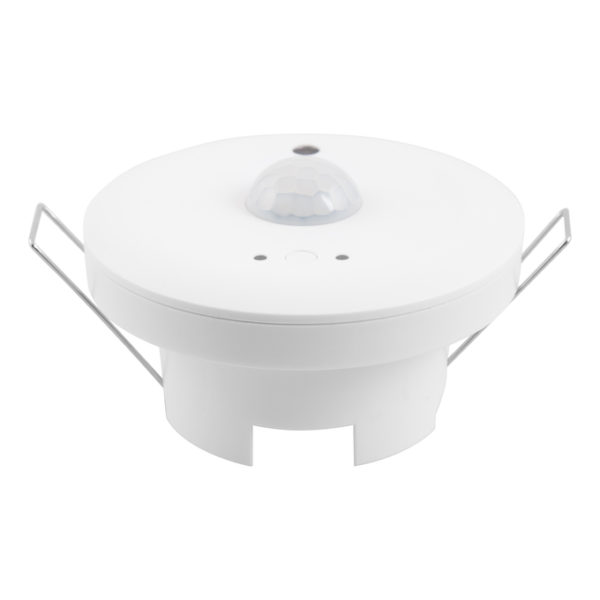

SENSOR DIRECT LS-PD-7 IR CI ZB

SENSOR DIRECT LS-PD-7 IR CI ZB

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854476358 Категория:
Product benefits
  • Quick and easy installation using spring clips
  • Low maintenance through mains power operation
  • Additional energy saving up to 50 % compare to LED On/Off installation
  • Zigbee 3.0 certified device for integration to any 3rd party Zigbee Control System
  • The right light at the right time at the right moment, fully autonomous
  • Compatible with LEDVANCE VIVARES ZIGBEE and DIRECT EASY light management system
Areas of application
  • Open office spaces
  • Meeting and conference rooms
  • Storage and break areas
  • Classrooms
  • Corridors
  • Stairways
Product features
  • Zigbee 3.0 certified light and presence sensor for ceiling integration
  • Presence detection via passive IR element
  • AC mains powered 100 V — 277 V
  • Detection height up to 4 m
  • Large detection area up to 7 m
  • Direct commissioning via bluetooth possible
Equipment / Accessories
  • Surface mounting via SENSOR CM KIT
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
References / Links
  • For current information see
GTIN

4099854476358
Nominal wattage

0.36 W
Nominal voltage

100…277 V
Height

55.00 mm
Product weight

210.00 g
Product color

White
Body material

Polycarbonate (PC)
Ambient temperature range

-20…+50 °C
Temperature range at storage

-40…+85 °C
Type of protection

IP20
Dimmable

No
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1), 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV329) — (3147-75-9)
Protection class

II
Mains frequency

50…60 Hz
Power factor λ

0.2
Length

88.00 mm
Width

88.00 mm
Type of current

AC
Added function

VIVARES
Temperature range in operation

-20…+50 °C
Dimming interface

Zigbee Direct
Cable cross-section, input side

0.5…1.5 mm²
Wire preparation length, input side

6…7 mm
Type of installation

Ceiling integration
Commissioning App

DIRECT EA
Maximum installation height

4 m
Detection angle

360 °
