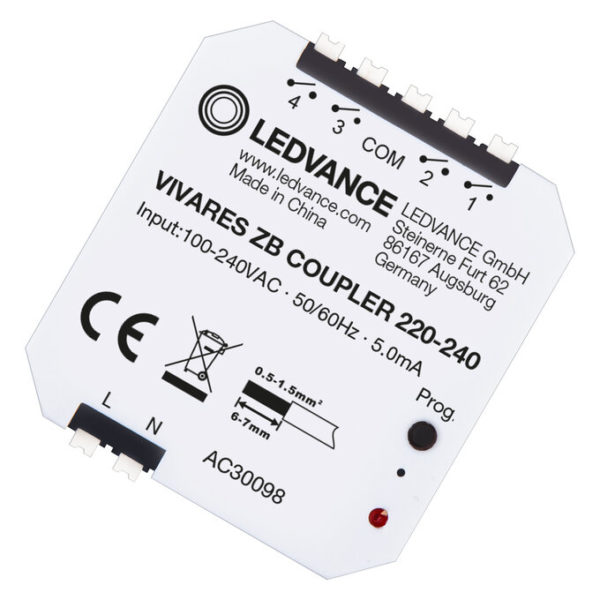

VIVARES ZB COUPLER

VIVARES ZB COUPLER

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075463806 Категория:
Product benefits
  • Works together with VIVARES ZB Control & Components
  • 4 fully programmable inputs for individual control
  • Control rooms, groups, devices and recall scences
  • Small dimensions allow mounting in standard flush box
  • Quick and easy installation without additional control cables
Areas of application
  • Offices
  • Corridors
  • Classrooms
  • Training rooms
  • Stairways
  • Sanitary areas
Product features
  • Pushbutton coupler with wireless Zigbee 3.0 technology
  • AC mains or DC operation possible
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Disconnect mains before installation.
GTIN

4058075463806
Nominal wattage

0.30 W
Nominal voltage

100…240 V
Height

15.00 mm
Product weight

23.7 g
Product color

White
Ambient temperature range

-20…+45 °C
Type of protection

IP20
Dimmable

No
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Cover material

Polycarbonate (PC)
Mains frequency

50…60 Hz
Length

50.00 mm
Width

43.00 mm
Quantity of precious metals

0 mg
Quantity of rare earths

0 mg
Temperature range in operation

-20…+45 °C
Dimming interface

Zigbee 3.0
Cable cross-section, output side

0.5…1.5 mm²
Permitted rel. humidity during operation

10…95 %
Approval marks – approval

Ro
Type of installation

Recessed
Transmitter range

10 m 1)
Number of control outputs

4
