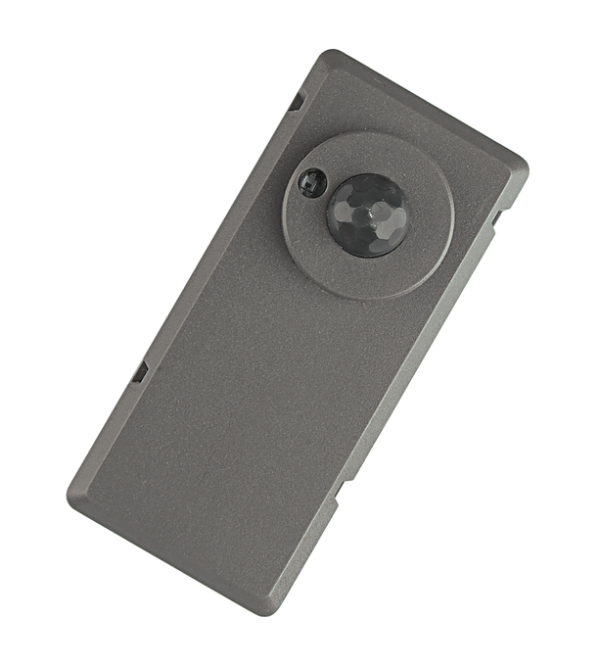

Touch DIM LS/PD LI

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4008321023025 Категория:
Product benefits
  • A setpoint for daylight-dependent control can be stored by double clicking
  • Operated via standard switches
Areas of application
  • Single luminaires in office areas
Product features
  • Touch DIM light and presence sensor
  • Can also be operated purely as a presence sensor
  • Maximum signal line length: 10 m
  • Maximum power input: 0.5 W
  • Delay time: 15 min
Equipment / Accessories
  • Suitable for up to 4 QTi DALI ECG or 4 HTi DALI transformers or 4 OTi DALI LED drivers
GTIN

4008321023025

Nominal wattage

0.50 W

Nominal voltage

220…240 V

Height

21.00 mm

Product weight

24.00 g

Product color

Anthracite

Ambient temperature range

0…+50 °C

Type of protection

IP20

Dimmable

No

Minimum rate of recycled material in packaging

80 % 1)

Minimum percentage of recycled content in the product

0 % 1)

Product recyclability

Mostly recyclable product 1)

Packaging recyclability

Mostly recyclable packaging 1)

List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No

Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Additional info can be provided per individual request

Protection class

II

Mains frequency

50 Hz

Length

63.00 mm

Width

29.00 mm

Quantity of precious metals

0 mg

Quantity of rare earths

0 mg

Dimming interface

Touch DIM

Approval marks – approval

CE

Max. cable length to lamp/LED module

10 m

Type of installation

Luminaire integration

Number of control outputs

1

Maximum installation height

4 m

Detection angle

80 ° 1)

Operating range, light sensor

10…350 lx 2)
