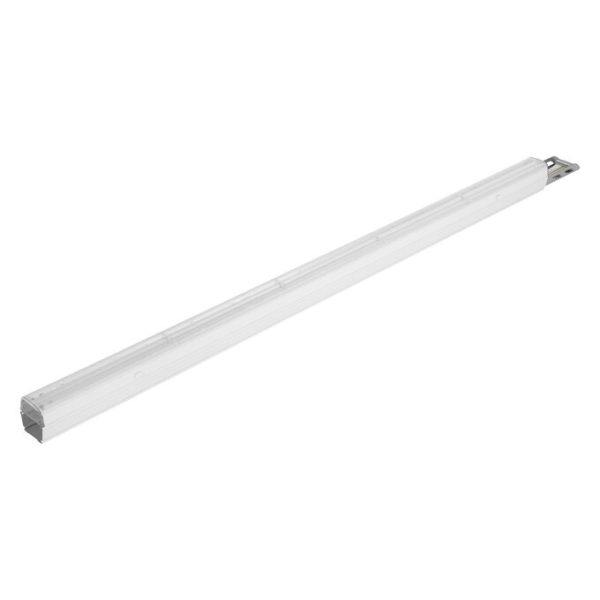

TruSys® PFM EM W 50 W 4000 K AT 3H

TruSys® PFM EM W 50 W 4000 K AT 3H

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075291171 Категория:
Product benefits
  • Seamless integration of luminaires with emergency lighting function into general lighting
  • Easy wiring thanks to included prewired driver and battery for Emergency lighting function
  • Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
  • Convenient visualization of results of automatic test with an included control LED
  • Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
  • High luminous efficacy in normal operation
  • 3 years guarantee
  • Homogenous light distribution
  • Easy installation, no tools required for connection
  • Energy saving and cost-effective
  • Flexible application due to a range of different lumen packages and beam angles
  • Rows of up to 57 luminaires possible
Areas of application
  • Emergency illumination of escape routes
  • Antipanic lighting
  • Buildings requiring up to 3 h emergency light operation
  • Direct replacement for luminaires with fluorescent lamps
  • Industry halls, high rack warehouse, garages, hardware stores
  • Discounters, supermarkets
Product features
  • Certified according to European norms (EN 60598-1:2015; EN 60598-2-22:2014)
  • Luminaire suitable for normal lighting and emergency lighting
  • Self-contained luminaires
  • Emergency lighting function: battery discharge time of 3 h
  • Function test of emergency lighting: automatic (AT)
  • Battery technology: LiFePO4
  • Beam angle wide: 90°
  • Click into place solution with smart click buttons
  • Luminous efficacy: up to 160 lm/W
  • Fixed luminare taps
  • Lumen package 5600 lm, 8000 lm, 11200 lm
  • Steel-sheet housing
Equipment / Accessories
  • Mounting rail with fixed integrated 8-pole cable
References / Links
  • For Guarantee see
GTIN

4058075291171
Nominal wattage

50.00 W
Nominal voltage

220…240 V
Nominal current

270.000 mA
Luminous flux

8000 lm
Luminous efficacy

160 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

≥80
Standard deviation of color matching

≤3 sdcm
Photobiological safety group acc. to EN62778

RG1
Beam angle

90 °
Height

39.40 mm
Product weight

1660.00 g
Product color

White
Housing color

White
Body material

Steel
Ambient temperature range

-25…+40 °C
Temperature range at storage

5…+35 °C
Type of connection

Plug-In connection
Type of protection

IP20
Dimmable

Yes
Lifespan L70/B50 at 25 °C

65000 h 1)
Number of switching cycles

100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1) Nonafluorobutanesulfonic acid (59933-66-3)
Mounting type

Suspended/Surface
Mounting location

Mounting rail
Protection class

I
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

Automatic
With light source

Yes
Cover material

Polymethylmethacrylate (PMMA)
Mains frequency

50…60 Hz
Inrush current

30 A
Inrush current time Th50

265 µs
Power factor λ

> 0.90
Total harmonic distortion

< 20 %
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

8
Max. number of luminaires per miniature circuit breaker C10

8
Max. number of luminaires per miniature circuit breaker C16

13
Protection class IK (shock resistance)

IK04
Length

1500.00 mm
Width

66.80 mm
Application environment

Indoor
Type of Battery

LiFePO4
Nominal voltage of battery

3.2 V
Nominal capacity of battery

9000 mAh
Lifespan L80/B10 at 25 °C

60000 h 1)
Battery charging time

< 24 h
Light emitting surface material

PMMA
Luminous flux in emergency operation mode

600 lm
Battery life in emergency operation mode

3 h
UGR

21
Lifespan L90/B10 at 25 °C

50000 h
Type of emergency light operation

Maintain
Luminous flux in maintained operation mode

8000 lm
Integrated test switch

No
Low flicker

Yes
Wattage in emergency operation mode

4 W
ECG - Output ripple current

< 20 %
Area of emergency application

Anti-panic lighti
Wattage in maintained operation mode

50 W
