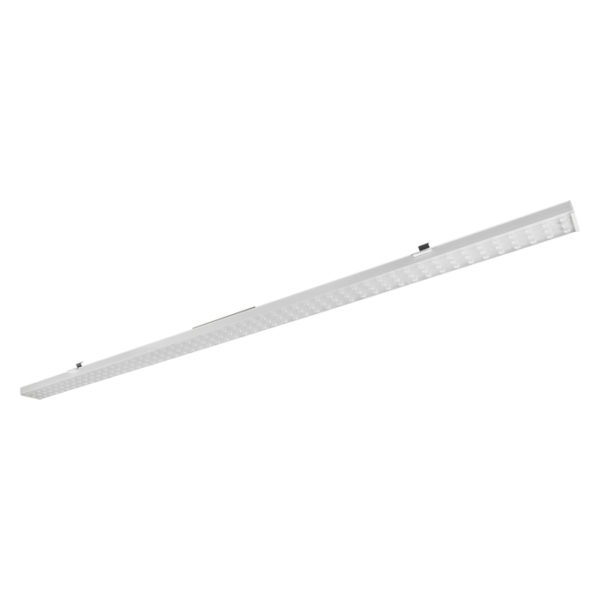

TRUSYS UNIV P 75W 840 N CL DALI

TRUSYS UNIV P 75W 840 N CL DALI

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854311697 Категория:
Product benefits
  • The solution for refurbishment: universal fitting to existing trunking luminaire system
  • Easy installation, no tools required for connection
  • Energy saving and cost-effective
  • Flexible application due to a range of different lumen packages and beam angles
Areas of application
  • Direct replacement for luminaires with compact fluorescent lamps
  • Industry halls, high rack warehouse, hardware stores
  • Discounters, supermarkets
Product features
  • IoT-ready DALI-2 driver
  • Beam angles: 120° (VW), 90° (W), 60° (N), 30° (VN)
  • Click into place solution with smart click buttons
  • Luminous efficacy: up to 180 lm/W
  • Lifetime (L80/B10): up to 100,000 h (at 25 °C)
  • Initial color consistency: ≤ 3 SDCM
Equipment / Accessories
  • Various accessories available
References / Links
  • For Guarantee see
GTIN

4099854311697
Nominal wattage

75.00 W
Nominal voltage

220…240 V
Nominal current

340.000 mA
Luminous flux

12750 lm
Luminous efficacy

170 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

> 80
Standard deviation of color matching

≤3 sdcm
Photobiological safety group acc. to EN62778

RG1
Beam angle

60 °
Height

26.00 mm
Product weight

1790.00 g
Product color

White
Housing color

White
Body material

Aluminum
Ambient temperature range

-20…+40 °C
Temperature range at storage

-40…+80 °C
Type of connection

Plug-In connection
Type of protection

IP20
Dimmable

Yes
Lifespan L70/B50 at 25 °C

120000 h 1)
Number of switching cycles

50000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1), N,N-Dimethylformamide (68-12-2)
Mounting type

Surface/Suspended
Mounting location

Mounting rail
Protection class

I
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Cover material

Polymethylmethacrylate (PMMA)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

0/50/60 Hz
Inrush current

0.34 A
Inrush current time Th50

156 µs
Power factor λ

≥ 0.90
Total harmonic distortion

≤ 15 %
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

9
Max. number of luminaires per miniature circuit breaker C10

7
Max. number of luminaires per miniature circuit breaker C16

12
Protection class IK (shock resistance)

IK02
Length

1504.00 mm
Width

68.00 mm
Type of dimming

DALI-2
Application environment

Indoor
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Added function

VIVARES
Lifespan L80/B10 at 25 °C

100000 h 1)
Adjustable

No
Light emitting surface material

Polymethylmethacrylate (PMMA)
Luminous flux in emergency operation mode

2050 lm
Output current

500 mA
Lifespan L90/B10 at 25 °C

54000 h
Low flicker

Yes
RAL Color (most similar)

RAL 9003
Wattage in emergency operation mode

11.25 W
ECG - Output ripple current

< 5 %
Type of Emergency Lighting (EL)

EL certified driver (0Hz / DC operation) for central battery operation included
IoT ready

Support of DALI data type PART 251, 252, 253 1)
EPD

LEDV-00033-V01.01-EN
