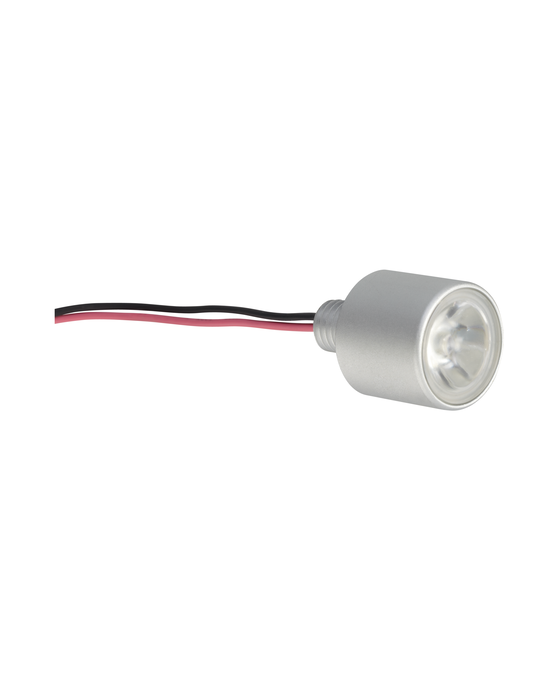

DE1 -W4F-830-G3

DE1 -W4F-830-G3

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4052899474741 Категория:
Product benefits
  • Metal package for optimum heat removal
  • Integrated M10x1.5 thread for simple installation
  • No additional heat sink required
  • Narrow beam angle for use as a spot source
  • Perfect centering thanks to flange on the floor of the casing (diameter 12 mm)
  • Low maintenance costs thanks to a lifetime of up to 70,000 h
  • 5 year guarantee
Areas of application
  • For accent, orientation or route lighting
  • Shelf and furniture lighting
  • Suitable for outdoor use
Product features
  • Type of protection IP65 according to DIN EN 60529
  • The modules can only be connected in series
  • Two-core connecting cable (500 mm)
  • Dimmable
References / Links
  • For more information on the multi-level guarantee and the terms and conditions of the guarantee visit
GTIN

4052899474741
Nominal wattage

1 W
Nominal voltage

2.9 V
Nominal current

0.35 A
Luminous flux

95 lm
Luminous efficacy

100 lm/W
Color temperature

3000 K
Light color (designation)

Warm White
Color rendering index Ra

80
Standard deviation of color matching

4 sdcm
Beam angle

15 °
Height

23.00 mm
Product weight

24.00 g
Ambient temperature range

-25…+55 °C
Temperature range at storage

-25…85 °C
Type of protection

IP65
Dimmable

Yes
Number of switching cycles

35000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Diameter

23.0 mm
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Length

20.0 mm
Width

23.00 mm
Product remark

Modules perfectly matched to OSRAM OPTOTRONIC® LED drivers (see relevant tabl
Energy efficiency class

F
Energy consumption

2.00 kWh/1000h
Lighting technology used

LED
Construction wattage

1.00 W
Type of current

DC
Maximum temperature at tc test point

-25…90 °C
Lumen main.fact.at end of nom.life time

0.70
Warm-up time (60 %)

‹ 2.00 s
Luminous intensity

800 cd
Rated peak intensity

800 cd
Cable length

500.000
Input voltage range

2.7…3.3 V
Temperature range in operation

-25…90 °C 1)
Light color LED

White
Rated beam angle (half peak value)

15.00 °
Number of LEDs per module

1
Nominal lamp life time

70000 h
Energy class of contained light source

F
Total useful luminous flux [PICOS]

100 lm
