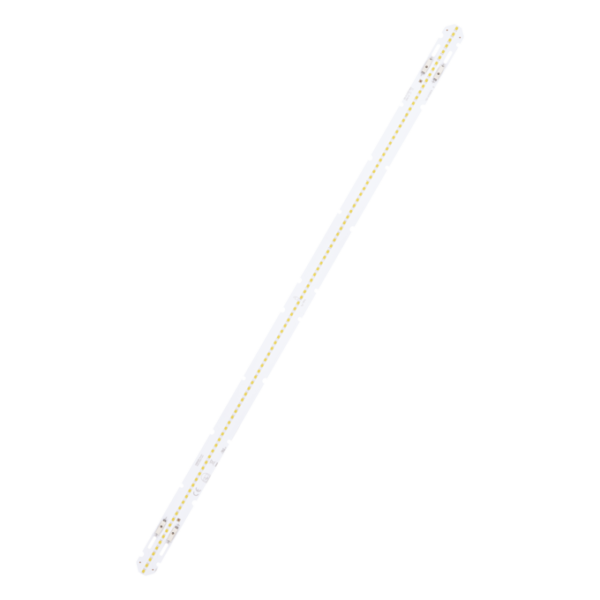

PL-LIN-Z6 4000-840 560X20-LV

PL-LIN-Z6 4000-840 560X20-LV

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4052899606234 Категория:
Product benefits
  • Slim luminaire design by small and flexible form factor
  • High homogeneity thanks to small LED pitch
  • High voltage (HV) optimized for non-isolated, low voltage (LV) optimized for SELV operation
  • Adjustable luminous flux, efficacy and lifetime
  • Direct the light where it’s needed while using PrevaLED Linear Optics
Areas of application
  • Office
  • Industry
Product features
  • Module efficacy: up to 206 lm/W
  • Available with luminous flux: 245 lm on 62 mm, 275 lm on 70 mm
  • Available with luminous flux: 550 lm on 140 mm
  • Available with luminous flux: 1,100 lm or 2,000 lm on 280 mm
  • Available with luminous flux: 2,200 lm or 4,000 lm on 560 mm
  • Available with color temperature: 2,700K, 3,000 K, 4,000 K, 5,000 K or 6,500 K
  • High initial color consistency: ≤ 3 SDCM
  • Average lifetime (L80 B50): > 70,000 h (temperature at Tc = 50 °C)
  • CE marked, ENEC certified; UL listed
GTIN

4052899606234
Nominal wattage

21.30 W
Nominal voltage

42.7 V
Nominal current

0.5 A
Luminous flux

3969 lm
Luminous efficacy

190 lm/W
Color temperature

4000 K
Light color (designation)

Neutral White
Color rendering index Ra

> 80
Standard deviation of color matching

3 sdcm
Beam angle

120 °
Height

5.00 mm
Product weight

40.00 g
Ambient temperature range

-20…+75 °C
Temperature range at storage

-30…85 °C
Type of protection

IP20
Number of switching cycles

100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Length

560.00 mm
Width

20.00 mm
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Energy efficiency class

C
Energy consumption

21.30 kWh/1000h
Lighting technology used

LED
Construction wattage

21.30 W
Type of current

DC
Maximum temperature at tc test point

75 °C
Lumen main.fact.at end of nom.life time

0.80
Warm-up time (60 %)

‹ 2.00 s
Luminous intensity

1290 cd
Performance temp. acc. to IEC 62717

50 °C
Temperature range in operation

-20…75 °C
Light color LED

White
Rated beam angle (half peak value)

120.00 °
Number of LEDs per module

96
Nominal lamp life time

50000 h
Energy class of contained light source

C
Nom. useful luminous flux 120° [PICOS]

4000 lm
